Product Description:

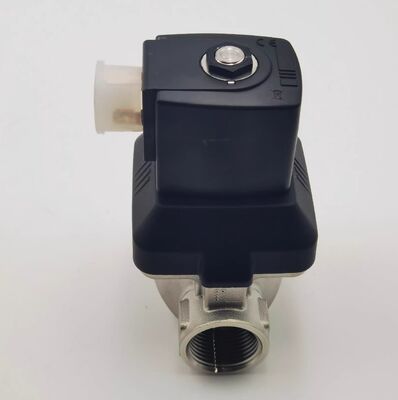

Burkert Series 6213 Water Solenoid Valves
The Burkert Series 6213 comprises servo-assisted 2/2-way diaphragm solenoid valves that are normally closed. These valves are recognized for their compact design, high flow capacity, ability to start up at zero pressure, and low noise levels. They are ideally suited for use with water, as well as neutral and mildly corrosive fluids.
Covering a range of sizes from DN10 to DN40 and operating pressures up to 10 bar, these valves find extensive applications in various sectors including water treatment, food and beverage production, pharmaceuticals, and more.
Core Positioning and Operating Principle
The Series 6213 valve functions as a P/NC (normally closed with inlet port P) 2/2-way solenoid valve utilizing a force-coupled diaphragm paired with a spring in a servo-assisted configuration. The standard model supports startup at zero pressure, though a minimum pressure differential of 0.1 bar is advised to ensure full valve opening.
For specialized needs, the HP00 variant is designed to open without requiring any pressure difference, making it particularly suitable for gas and vacuum environments. Additionally, a damping mechanism within the valve structure helps to suppress water hammer effects and minimize switching noise, thereby guaranteeing smooth and quiet operation.
Technical Parameters:
| Seal |
NBR |
| Temperature Range |
-10℃~100℃ |
| Orifice |
DN 10…DN 50 |
| Orifice Size |
DN 10…DN 50 |
| Application |
Fluid Control In Industrial Automation, Water Treatment, Chemical Processing |
| Product Type |
6213 |
Applications:
Water Treatment Industry
Valves are commonly utilized for pipeline switching and flow regulation within systems such as tap water supply, sewage treatment, and pure water preparation.
Featuring a valve body constructed from 316L stainless steel and seals made of FKM or EPDM, these valves demonstrate strong resistance against corrosion caused by residual chlorine and impurities found in water. Additionally, their damping structure effectively mitigates water hammer impacts in water pipelines, ensuring system stability.
Food and Beverage Industry
These valves find application in filling equipment, cleaning-in-place (CIP) systems, and ingredient transport pipelines for beverages, dairy products, condiments, and similar goods.
The lead-free brass valve body adheres to European standards for drinking water and materials that come into contact with food. Moreover, the valve's smooth inner surface minimizes the accumulation of media residues, thereby fulfilling the stringent hygiene requirements of the food and beverage sector.
Pharmaceutical and Biotech Industry
Valves are employed to control the on-off flow of purified water, water for injection (WFI), and reagent fluids along pharmaceutical production lines.
Their compatibility with various materials and reliable sealing capabilities prevent contamination of the medium. An optional ATEX-certified explosion-proof version is available, making these valves suitable for hazardous environments found in pharmaceutical workshops.
General Industrial Processes
These valves are suitable for managing compressed air pipelines, cooling water circulation in machine tools, and solvent transfer within chemical laboratories.
Their compact design allows for easy installation in confined spaces. Additionally, they offer a 100% ED continuous working capacity, supporting the demands of prolonged operation in industrial equipment.
Agricultural and Horticultural Irrigation
Used in automated irrigation systems, these valves control the opening and closing of waterways and can be integrated with sensors to achieve precise water delivery to crops.
Their zero-pressure startup feature enables adaptation to low-pressure water supply conditions commonly encountered in agricultural irrigation setups.
Packing and Shipping:
Burkert solenoid valves are carefully packaged to ensure maximum protection during transit. Each valve is securely placed in a custom-fitted box with protective cushioning materials to prevent damage from shocks and vibrations. The packaging is designed to safeguard the product from dust, moisture, and other environmental factors.
For shipping, Burkert solenoid valves are handled with care and shipped through reliable carriers to ensure timely delivery. Tracking information is provided for all shipments, and special handling instructions are followed for sensitive or customized orders. Whether shipped domestically or internationally, Burkert ensures that the solenoid valves arrive safely and in perfect working condition.
