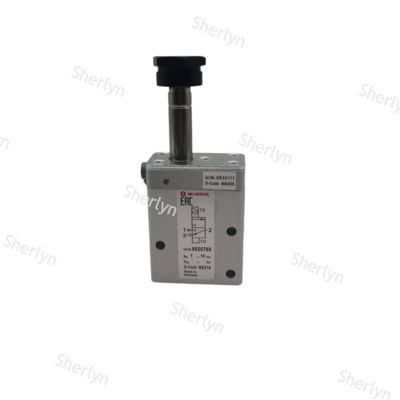

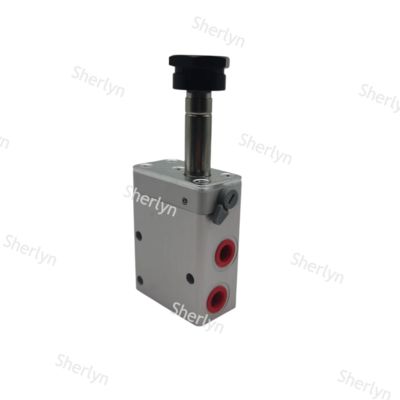

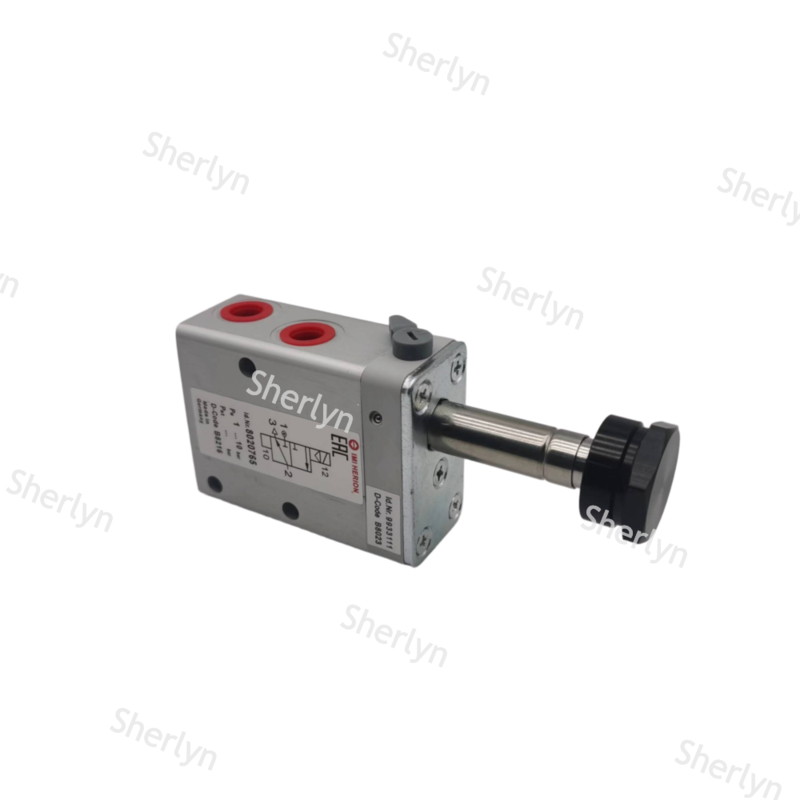

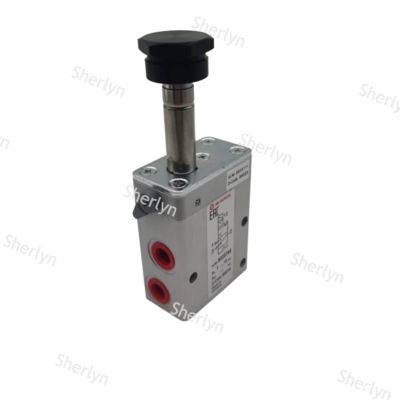

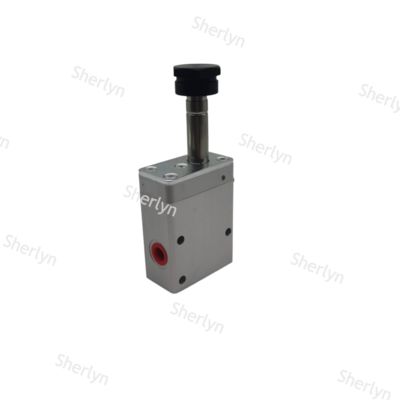

NORGREN 8020765 Pilot Operated Two Position Three Way Solenoid Valve

Product Description:

NORGREN's pilot operated solenoid valves are highly esteemed in the realm of industrial automation for their superior reliability, expansive flow control capabilities, and long-lasting durability.

The operational concept hinges on a pilot structure that harnesses fluid pressure differentials to propel the main valve core, thereby achieving precise control over large flow volumes with minimal electromagnetic force.

The valve bodies are typically crafted from die-cast aluminum or brass, with seals predominantly composed of wear-resistant, leak-proof nitrile rubber (NBR). Certain valve core variations feature specialized coated metal seals within the valve sleeves.

Performance-wise, these valves are known for their high flow rates (up to 2600 L/min) and wide working pressure ranges (e.g. -0.9 to 10 bar or 2 to 10 bar), making them suitable for a variety of pressure systems.

With a broad temperature tolerance for environmental adaptability (ranging from -10 °C to +50 °C, with some models extending to -15 °C), coupled with a coil boasting a high protection rating (e.g. IP65, dustproof, and waterproof), these valves are designed for diverse operating conditions.

Featuring a manual override function for safety and maintenance purposes - facilitating ease of debugging and enabling emergency operation - as well as a user-friendly coil system that allows for quick disassembly and hassle-free maintenance, these solenoid valves prioritize operational efficiency.

Applications:

In highly automated production environments, NORGREN pilot operated solenoid valves are the core components for controlling pneumatic systems.

Robot system: used to control the grasping, placement, and precise movements of robots, its fast response and high repeatability meet the strict requirements for rhythm and accuracy in automated production.

Automatic assembly and packaging line: Drive cylinders to complete product positioning, clamping, inspection, and packaging processes, ensuring efficient and smooth operation of the production line.

Material handling equipment: In sorting, conveying and other systems, it controls mechanisms such as baffles and splitters to achieve directional flow and distribution of materials.

Automotive manufacturing has extremely high requirements for the stability and lifespan of pneumatic components, and NORGREN solenoid valves are widely used in this field.

Welding and clamping: Controlling the cylinder of the welding tongs and fixtures to achieve precise welding and fixation of body sheet metal parts is a key component of the white body production line.

Spraying and control: In the painting workshop, reliably control valve switches and participate in precise management of the process.

Rail transit

• Door control system: used to control the opening and closing of passenger compartment doors, its high reliability ensures the safety and efficiency of passengers getting on and off the car.
• Braking and Stability System: As a part of the auxiliary control system, it participates in key functions such as air braking and sanding of the train.
