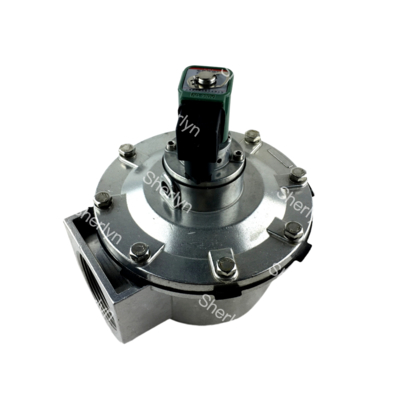

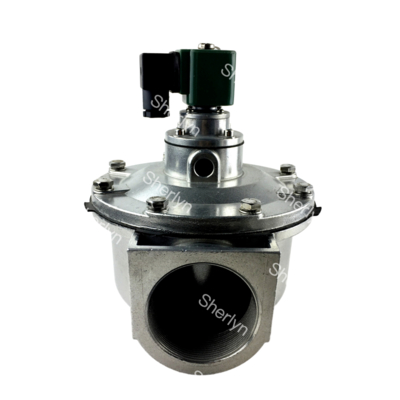

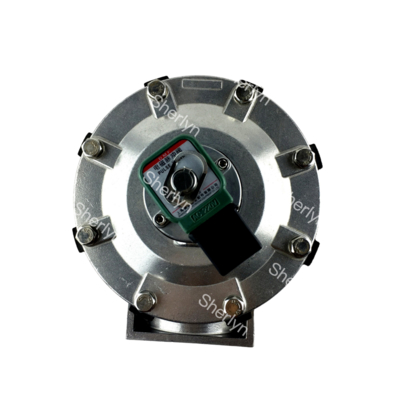

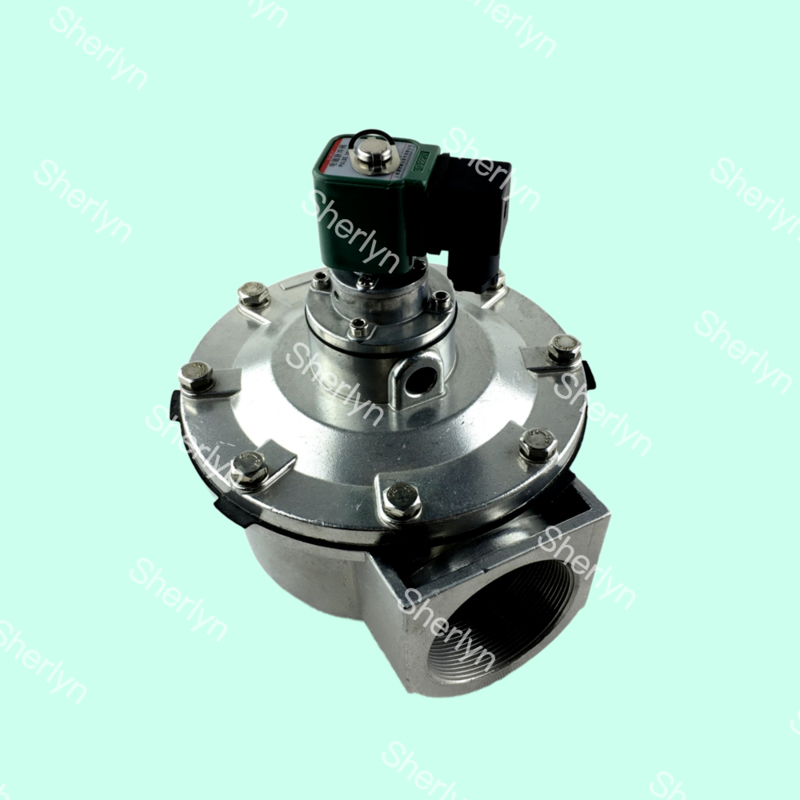

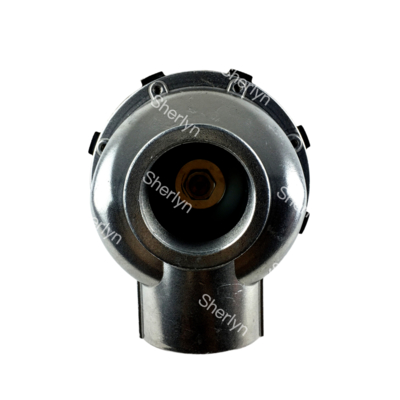

2.5Inch BFEC DMF-Z-62S Right Angle Pulse Jet Valve 24VDC 220VAC 110VAC

Product Description:

The DMF series is classified into three categories based on installation structure to accommodate different working conditions:
1. Right Angle (DMF-Z)
- Features a 90-degree import and export angle, compact structure, saving up to 5 space.
- Typical model: DMF-Z-25/40S, ideal for high dust environments in steel and cement plants.
- Advantages: Facilitates easy installation by directly connecting the airbag and spray pipe.

2. Direct Type (DMF-T)
- Incorporates a 180-degree import and export angle with low airflow resistance, suitable for small to medium-sized dust removal units.
- Typical model: DMF-T-20 (diameter 20mm), designed for dust collection in wood processing and food industries.
- Parameters: Working pressure of 0.4~0.7MPa, diaphragm life exceeding 1 million cycles.

3. Submerged (DMF-Y)
- Represents the mainstream model with the valve body embedded in the airbag installation, ensuring high circulation efficiency, suitable for scenarios with low-pressure gas sources.
- Typical models:
- DMF-Y-80 (three and a half inches): Features a large spray coverage area, enhancing dust removal efficiency.
- DMF-Y-102SA: Achieves a 4-inch injection effect with the 3-inch valve body, increasing injection volume by 45% compared to traditional 3-inch valves.
- DMF-Y-76S/90S: Designed with a large diameter (76mm~102mm), suitable for systems such as cement kiln tail and waste incineration on a large scale.

Applications:

Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.

Cement manufacturing: Kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).

Garbage incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.

Wood processing/food chemical industry: Sawdust or powder pneumatic conveying scenarios, suitable for straight-through valves (DMF-T series), requiring oil-free dry air (oil content < 5ppm).

Bunker arch breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.

Pneumatic conveying blockage removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food-grade calcium carbonate).

List of All DMF Series BFEC Pulse Jet Valves:

Support and Services:

Our Product Technical Support and Services for the Pulse Jet Valves include:

- Installation guidance and support

- Troubleshooting assistance

- Maintenance tips and recommendations

- Product training and education

- Warranty information and claims processing

Packing and Shipping:

Product Packaging:

The Pulse Jet Valves are carefully packaged in sturdy boxes with ample cushioning to ensure safe transit and delivery. Each valve is individually wrapped in protective material to prevent any damage during shipping.

Shipping Information:

Orders of Pulse Jet Valves are typically processed within 1-2 business days. We offer standard and expedited shipping options to meet your delivery needs. All shipments are tracked, and you will receive a tracking number once your order has been dispatched.
