Detailed Product Description
| Product Name: |
Pulse Valve Diaphragm |
Suitable Pulse Valve Model: |
G353A048, G353A049 |
| Diaphragm Material: |
NBR |
1 Set: |
1x Big Diaphragm, 1x Small Diaphragm, 2x Springs |
| Highlight: |
ASCO Diaphragm C113684
,
ASCO Membrane C113684
,
ASCO Pulse Valve Diaphragm
|
Product Description:
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Applications:
Industrial Baghouse Dust Collection System
Function: Control compressed air pulse jetting to remove accumulated dust from filter bags.
Industry Examples:
- Cement Plant: Tail gas collector (smoke temperature < 80°C)
- Steel Plant: Sintering machine head dust removal (requires front cooler)
- Wood Processing: Sawdust collection system
Powder Pneumatic Conveying Blockage Clearing
Install a pulse valve at pipeline blockage points, trigger instant air flow impact through C113825 diaphragm (e.g. food-grade calcium carbonate, plastic pellet conveying).
Silo Arch Breaking Device
Break material arches in coal powder silos/grain bins (working frequency: ≤ 30 times/minute).

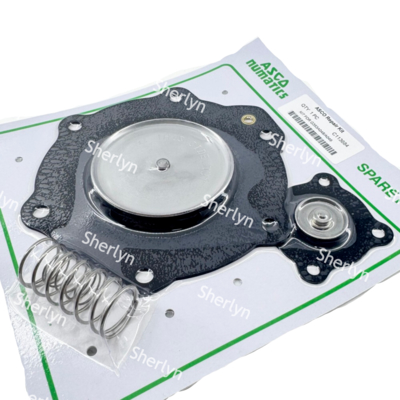

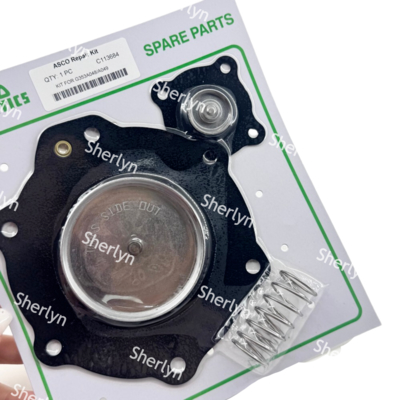

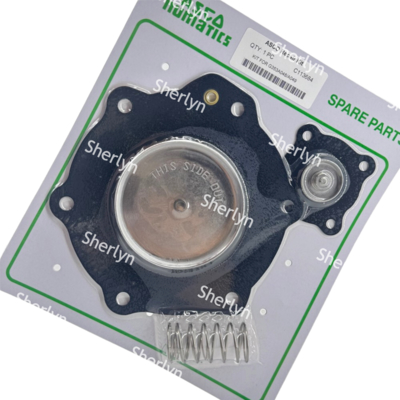

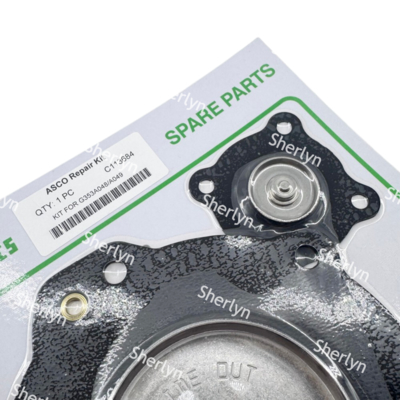

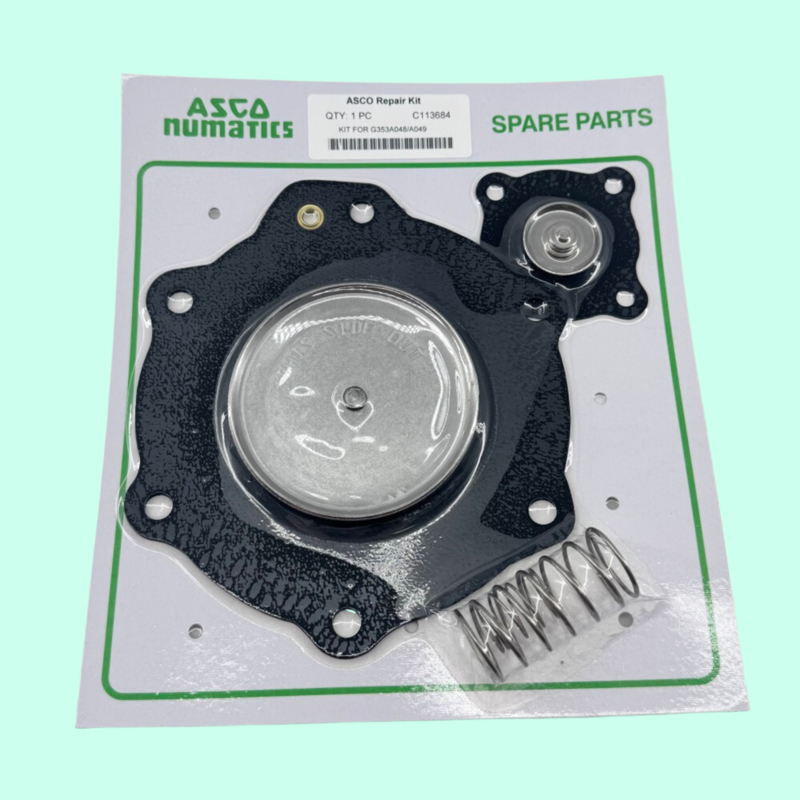

C113684 Diaphragm Repair Kit For G353A048 G353A049 Pulse Jet Valve
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
| Pulse Valve |
Pulse Valve |
Diaphragm |
Diaphragm Material |
| Port Size |
Model No |
Model No |
| 3/4'' |
SCG353A043 |
C113444 |
TPE, NBR, FKM |
| SCG353G043 |
| SGG353A043 |
| 1'' |
SCG353A044 |
| SCG353G044 |
| SGG353A044 |
| 3/4'' |
SCG353-052 |
| SCG353G052 |
| SGG353-052 |
| 1'' |
SCG353-053 |
| SCG353G053 |
| SGG353-053 |
| 1 1/2'' |
SCG353A047 |
C113827 |
NBR, FKM |
| SCG353G047 |
| SGG353A047 |
| SCG353A065 |
| SCG353G065 |
| SGG353A065 |
| 2'' |
SCG353A050 |
C113685, C113686 |
| SCG353G050 |
| SGG353A050 |
| 2 1/2'' |
SCG353A051 |
| SCG353G051 |
| SGG353A051 |
| 3'' |
SCG353D060 |
C123432, C123433 |
| SCG353G060 |
| 3'' |
SCXE353.060 |
C113928 |
| SCR353G060 |
| 3/4'' |
G353A041 |
C113443 |
TPE, NBR, FKM |
| 1'' |
G353A042 |
| 3/4'' |
G353-055 |
| 1'' |
G353-056 |
| 1 1/2'' |
G353A045 |
C113825 |
NBR, FKM |
| G353-066 |
| G353A046 |
C113826 |
| G353A063 |
| 2'' |
G353A048 |
C113684 |
| 2 1/2'' |
G353A049 |
Support and Services:
Our Product Technical Support and Services for the Pulse Valve Diaphragm include:
- Expert troubleshooting assistance
- Online resources and documentation
- Product installation guidance
- Regular maintenance tips
- Repair and replacement services
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for pulse valves, designed for efficient and reliable operation.
Package Contents: 1 Pulse Valve Diaphragm
Shipping Information: This product will be carefully packed to ensure safe delivery. Shipping options include standard and expedited shipping.
