Product Description:

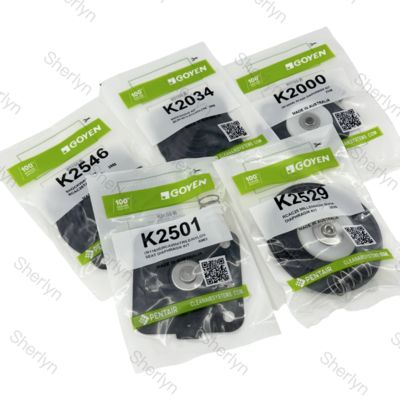

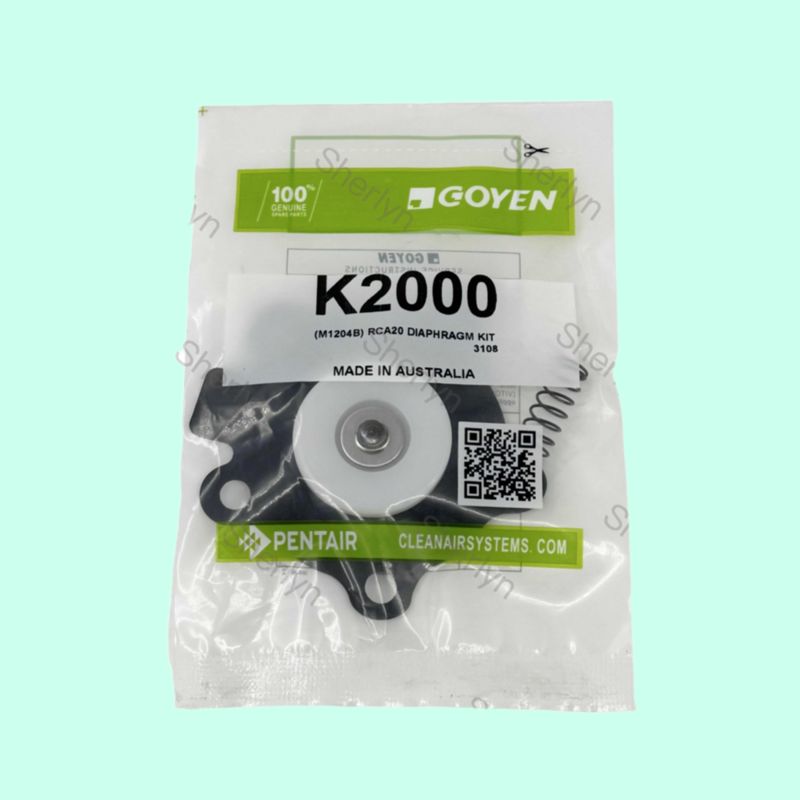

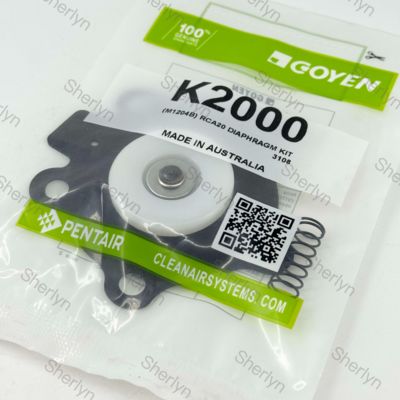

K2000 (M1204B) , K2002 (M764) , K2003 , K2007 Diaphragm (Membrane) for Goyen pulse valve CA20T , RCA20T , CA20DD , RCA20DD ;
NBR material is standard, working temperature range is -5 to +80 ℃ ;
Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃ .
Pulse valves are the "switch" for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve . Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header.
At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.
Applications:
Industrial Dust Removal System
Bag/filter cartridge dust collector pulse cleaning (such as cement plant kiln tail dust removal, steel plant blast furnace dust removal)
Each valve controls 20-50 filter bags, and the membrane operates at high frequency (≥ 1 time/minute)
High Temperature/Corrosive Gas Treatment
Waste incineration flue gas (FKM film resistant to high temperature of 200 °C)
Acidic and alkaline waste gas from chemical plants (EPDM membrane resistant to pH 3-11 corrosion)
Special Medium Environment
Food and pharmaceutical industry (EPDM food grade film anti-pollution)
Oil containing compressed air system (NBR diaphragm oil resistant guarantee seal)
Strict Physical Conditions
High-pressure impact scenario (CA62T/CA76T double diaphragm structure pressure of 0.85MPa)
High humidity environment (cement raw material grinding, dust removal, anti-condensation)

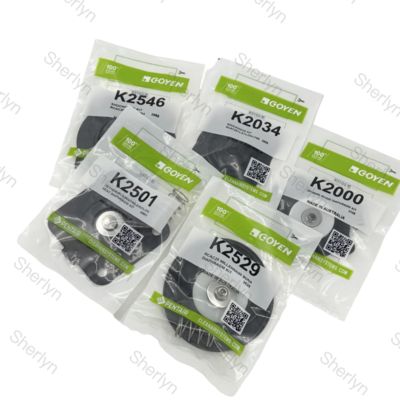

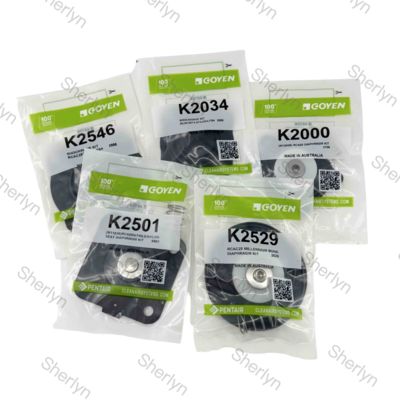

Ordering Number of Diaphragm For Goyen Pulse Valve:
| Pulse Valve Model |
NBR Diaphragm Model |
FKM Diaphragm Model |
Low Temprature Diaphragm Model |
| RCA10-6T |
K1001 |
K1002 |
/ |
| CA20T |
RCA20T |
K2000 (M1204B) |
K2007 |
/ |
| CA20DD |
RCA20DD |
K2002 (M764) |
| CA25T |
RCA25T |
K2501 (M1183B) |
K2503 (M1887) |
K2504 |
| CA25DD |
RCA25DD |
K2502 (M736) |
| CAC25FS |
RCA25FS |
|
| CA25MM |
RCA25MM |
|
| CA32T |
RCA32T |
K2500 (M1183) |
K2503 (M1887) |
/ |
| K2522 (M736) |
| CA35T |
RCA35T |
K3500 (M1581) |
K3501 |
K3502 (M1591) |
| CA40T |
RCA40T |
K4000 (M1182) |
K4007 |
/ |
| CA40MM |
RCA40MM |
| CA45T |
RCA45T |
K4502 (M2162) |
K4503 |
K4522 |
| CA45DD |
RCA45DD |
K4504 (M2187) |
| CA45FS |
RCA45FS |
|
| CA40MR |
RCA40MR |
|
| CA50T |
RCA50T |
K5004 (M1638A) |
K5000 |
/ |
| CA62T |
RCA62T |
K5005 (M1639A) |
| CA76T |
RCA76T |
K7600 |
K7601 |
/ |
| CA76MM |
RCA76MM |
| CA76MR |
RCA76MR |
| CA102MM |
RCA102MM |
K10200 |
K10201 |
/ |
| CA62MR |
RCA62MR |
K7604 |
K7602 |
/ |
| RCA20M |
K2003 (M1174B) |
/ |
/ |
| RCAC20T3, ST3, DD3, FS3 |
K2016 |
K2017 |
/ |
| RCAC25T3, DD3, FS3 |
K2529 |
K2530 |
|
| RCAC25FH3 |
K2531 |
/ |
/ |
|
| Pulse Valve Model |
Shockwave Diaphragm Model |
FKM Diaphragm Model |
/ |
| RCAC20T4, ST4, DD4, FS4 |
K2034 |
K2033 |
/ |
| RCAC25T4, ST4, DD4, FS4 |
K2546 |
K2551 |
/ |
| RCAC25FH3 |
K2545 |
/ |
/ |
| RCAC25T3, DD3, FS3 |
K2549 |
/ |
/ |
Support and Services:
Our Product Technical Support and Services for the Pulse Valve Diaphragm include:
- Installation guidance and instructions
- Troubleshooting assistance for any issues
- Maintenance tips and recommendations
- Product training and education
- Warranty information and support
Packing and Shipping:
Product Packaging: Each Pulse Valve Diaphragm is carefully packed in a protective cover to prevent any damage during transportation. The diaphragm is then placed in a sturdy cardboard box with adequate cushioning to ensure safe delivery.
Shipping: We offer worldwide shipping for the Pulse Valve Diaphragm product. Orders are typically processed within 1-2 business days and shipped via reliable courier services. Customers will receive a tracking number to monitor the delivery status of their order.
